Eco Inline Exhaust Kit

Eco Inline Exhaust Kit

1406600

$220.00
/
Tax included. Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon

The Eco Inline Exhaust Kit by Expella contains all the components needed for an affordable, low voltage, single point inline exhaust system for bathrooms, laundries and subfloors. The kit contains grilles, ducting and our most compact inline duct fan that is quiet, energy efficient and ideal for installing in tight ceiling spaces.

Combine this kit with your preferred internal grille from Expella’s designer range to create a complete ventilation system.


  Download Eco Inline Exhaust Kit fact sheet

Efficient, low voltage (24 volt) inline duct fan with exhaust capacity of 125 litres per second

Suitable for domestic bathroom and laundry exhaust systems

Exceeds Australian Building Code requirements (NCC2022)

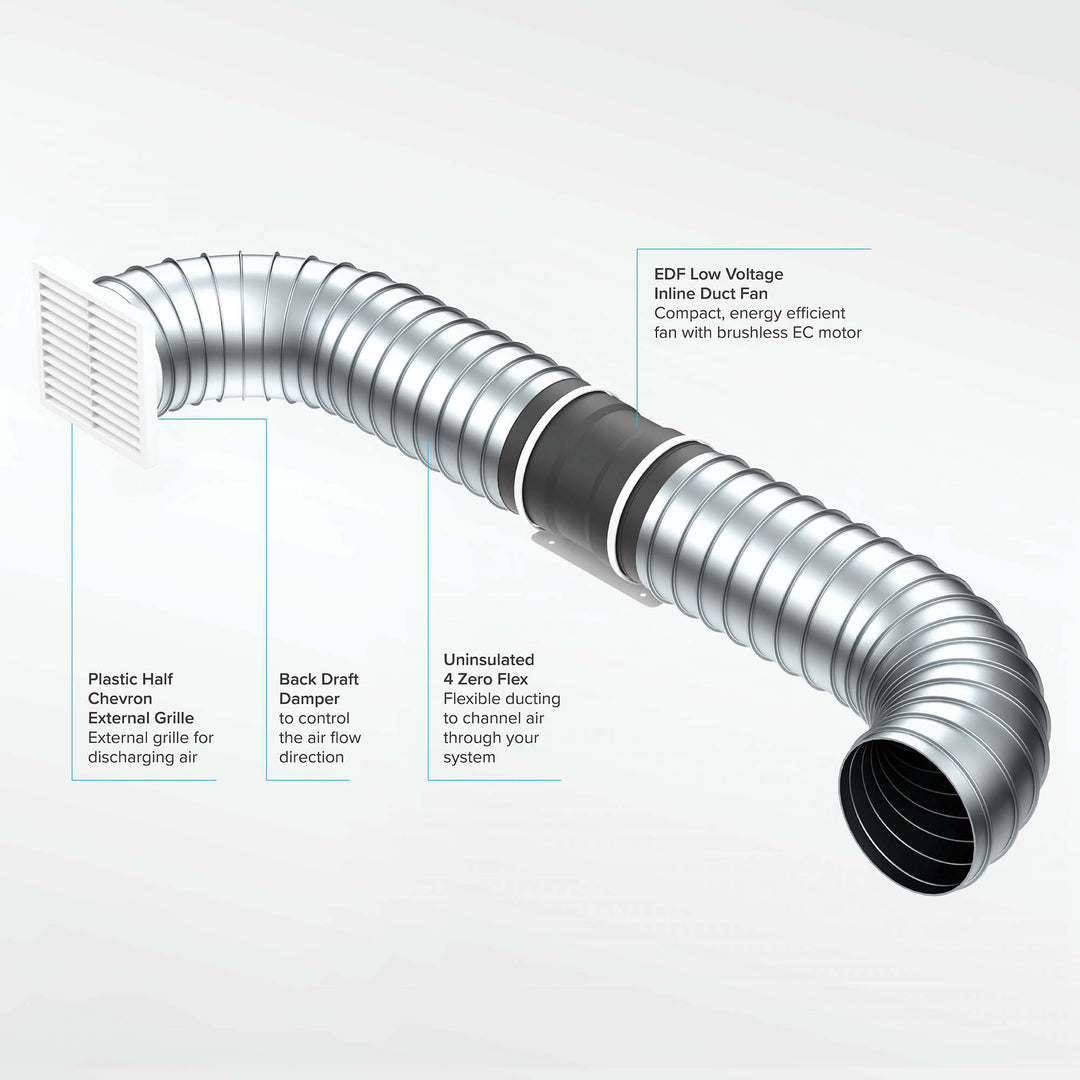

  • Convenient all in one ventilation kit containing everything required to install a single point inline exhaust system in a bathroom, laundry or subfloor
  • Low voltage (24 volt) inline duct fan with an EC brushless motor and maximum exhaust capacity of 125 litres per second
  • Low wattage fan is energy efficient and quiet to run
  • Compact lightweight fan, ideal for tight ceiling spaces
  • Fan has a mounting plate, 2 pin plug and 1.5m cord for easy on-site installation

Domestic bathrooms, laundries and subfloor systems

  • 1x EDF Duct Fan
  • 1x Mounting Plate
  • 1x 6 metre length duct – Uninsulated 4 Zero Flex, 150mm
  • 1x Back Draft Damper, Plastic, 150mm
  • 1x external grille – Half Chevron Grille, Plastic, 150mm
  • 1x 4m length tape, Reinforced Acrylic Foil 75mm
  • 2x O rings
  • 2x Cable ties

All components required for installation of the Eco Inline Exhaust Kit are included. The Low Voltage Inline Duct Fan has a 2 pin plug and requires a general power outlet along with duct and external grille installation.
Installation by an industry professional (e.g. electrician or builder) or experienced home handyman is recommended. A mounting plate for the fan is included. Fix the fan in a suitable location between the inlet location and discharge location ensuring it is accessible for future maintenance. Note that sharp bends in ducting can interfere with system performance, refer to installation instructions for further information.
Check product specifications with your tradesperson before ordering.

Periodic inspections and cleaning of the fan are required to prevent dirt, dust or lint accumulating on fan impeller. Fan must be disconnected from the power supply (unplug fan plug) before removing the motor.

2 year warranty from date of purchase. Refer to our warranty page for full warranty terms and conditions.
