1ECQ150

$340.00
/
Tax included. Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon
Size

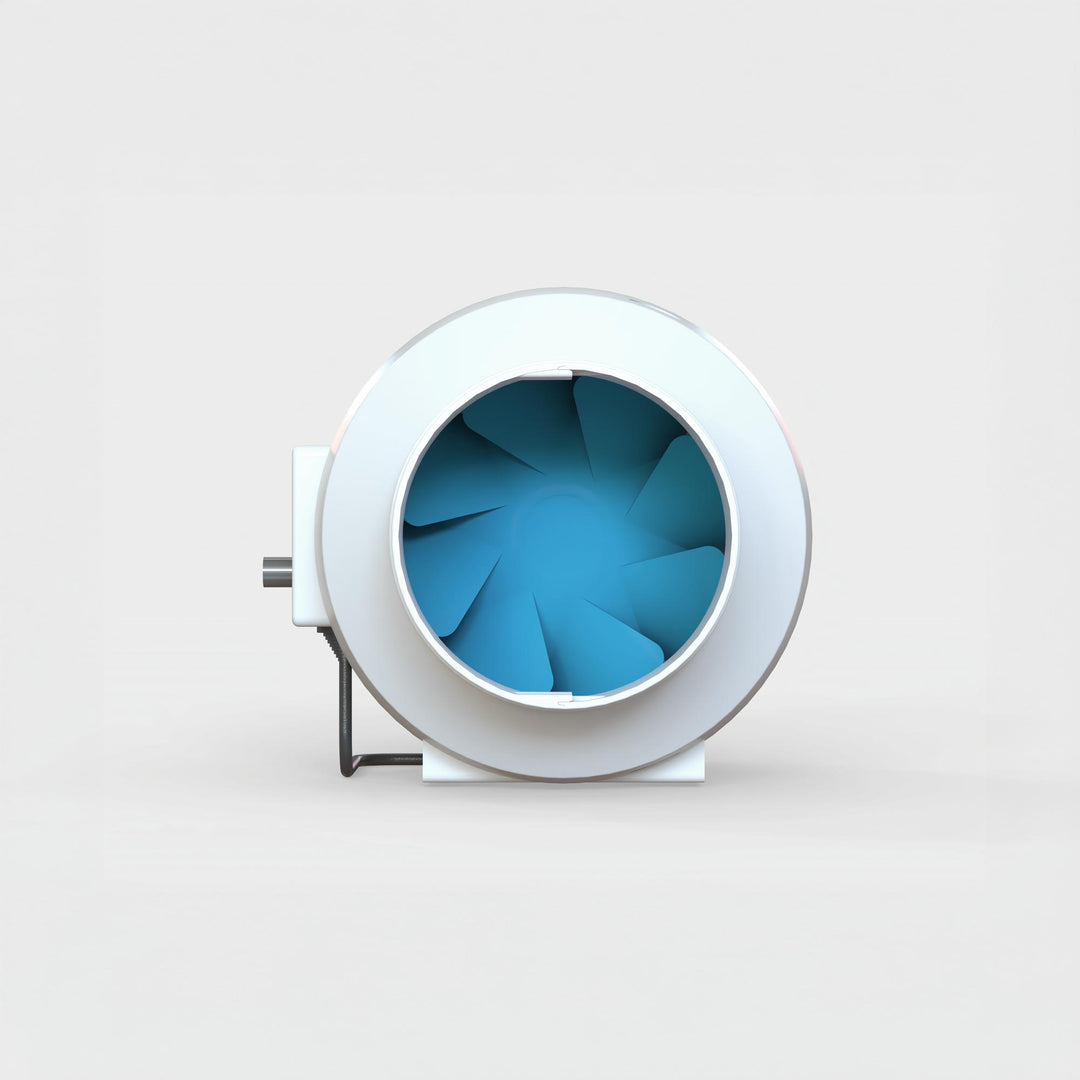

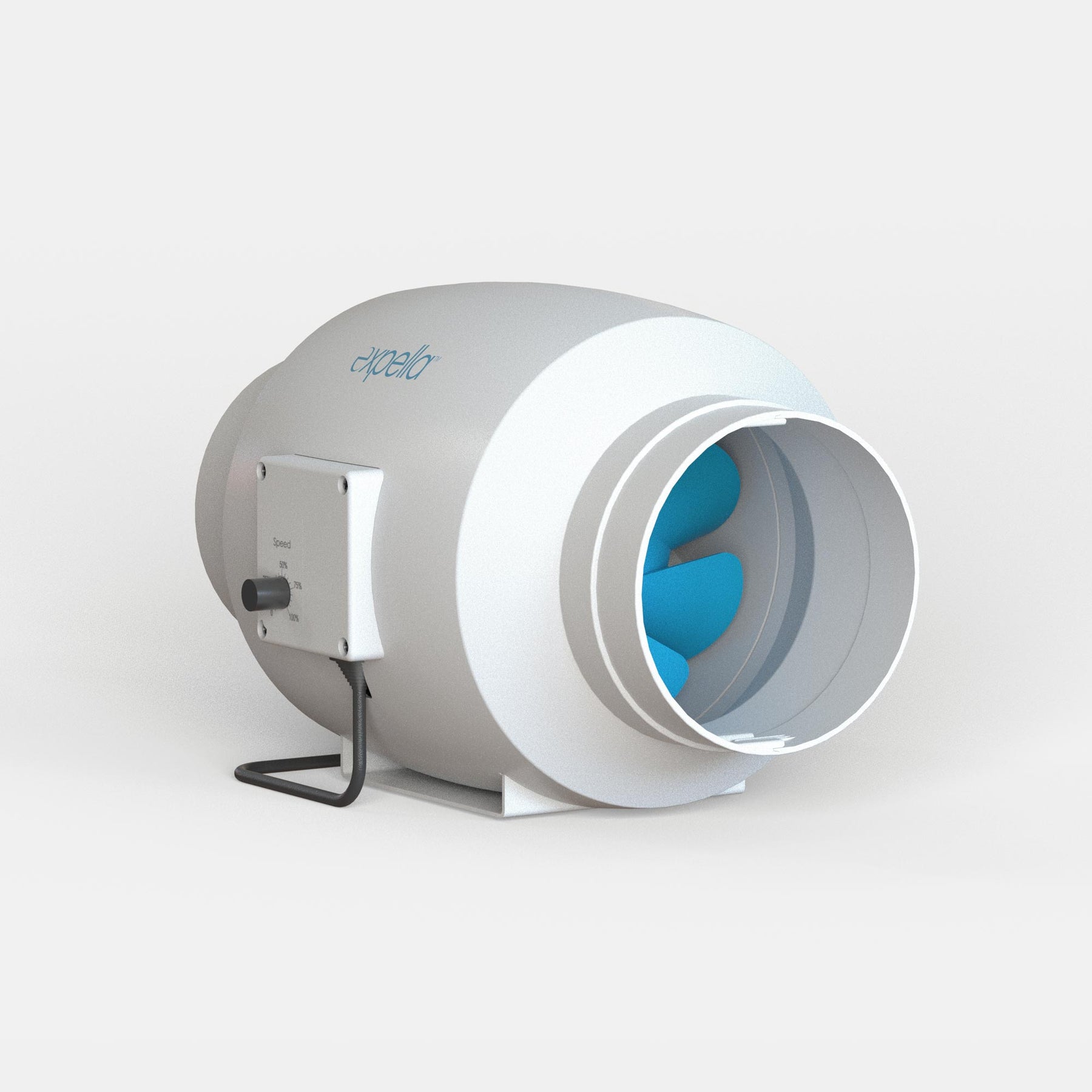

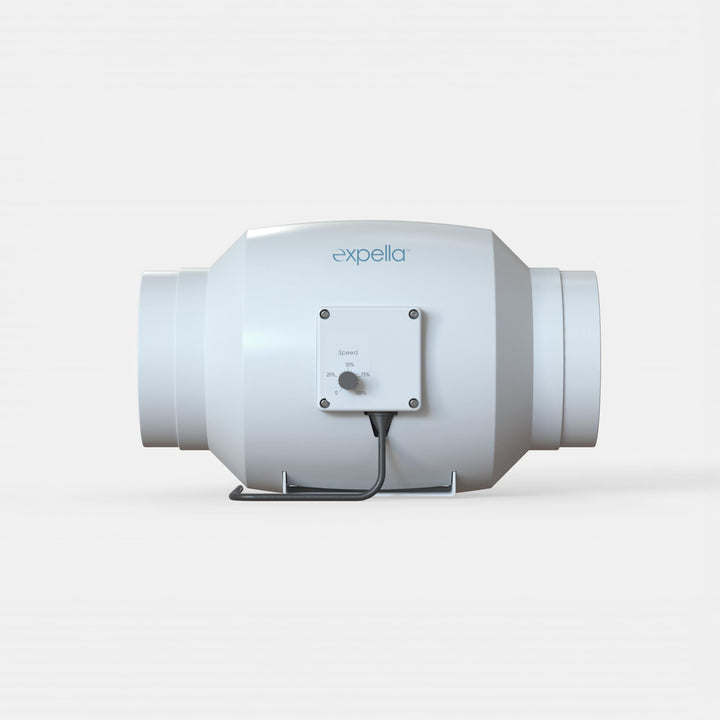

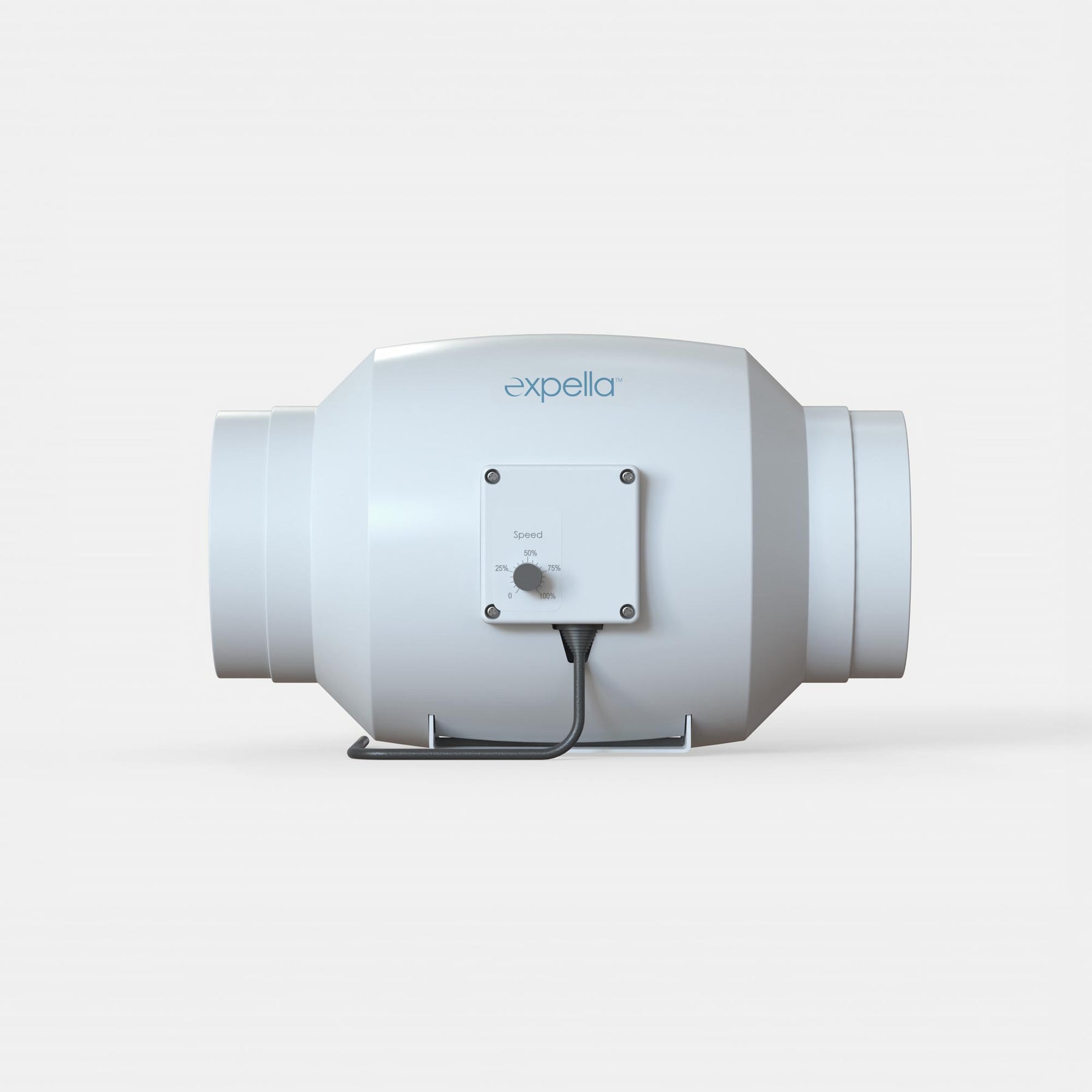

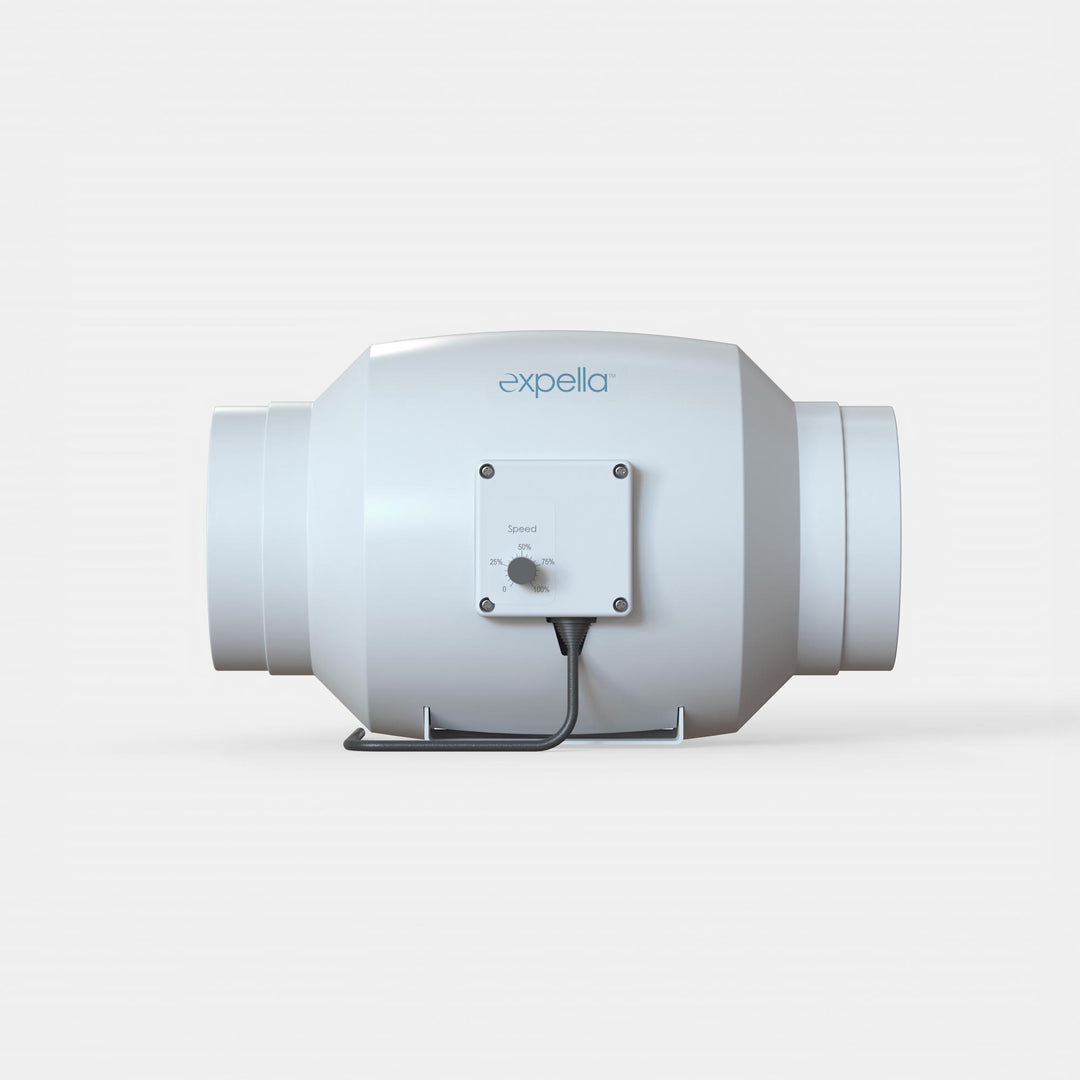

The ECQ is a compact range of mixed flow inline EC fans that are built to absorb sound. The brushless DC motor and onboard electronics offer a powerful air extraction solution that wear better over time than fans with traditional AC motors. Both fans in the ECQ range have a free turning dial for precise control over fan speed and a double layer of polyester to insulate fan noise.

ECQ fans are suitable for domestic and commercial settings including bathrooms, laundries, kitchen range hoods, storerooms, wardrobes and supply air systems.


  Download ECQ Inline Quiet Flow EC Fan fact sheet

Designed with a double layer of sound absorption for quiet operation

Suitable for single room or multi-room inline ventilation systems

Variable speed EC fan with a precision dial and brushless motor for reliable performance

  • Powerful mixed flow fans that are suitable for ventilation systems where high performance is required
  • Double layer of sound absorption for very quiet operation
  • EC (Electronically Commutated) fans consisting of a brushless DC motor with on-board electronics offering high performance, less wear over time and longer service life than traditional AC motors
  • External precision speed dial speed switch for control over airflow, energy efficiency and noise levels
  • Available in 2 sizes with the ECQ200 suitable for multi-point inline ventilation systems
  • Effective with long ducting lengths (up to 20m with correctly sized fan and ducting)
  • Quick clip mounting bracket, 3 pin plug and 1.5m cord for easy on-site installation

ECQ150

  • Bathrooms and powder rooms
  • Laundries
  • Kitchens
  • Subfloor systems

ECQ200

  • Multiple bathrooms/laundries
  • Wet areas
  • Commercial applications
  • Multi-point ventilation systems
  • ECQ Quiet Flow EC fan with integrated quick clip mounting bracket
  • 4x fixing screws and plugs
  • 1.5m cord with 3 pin plug

ECQ Inline Quiet Flow EC fans are to be installed as part of a single (ECQ150) or multipoint (ECQ200) inline ventilation system. The fan requires wiring along with duct and internal and external grille installation, Expella recommends the use of a back draft damper with this fan. Installation by an industry professional is recommended (e.g. electrician or builder). An integrated quick clip mounting bracket is included. Fix the fan in a suitable location between the inlet location and discharge location ensuring it is accessible for future maintenance. Note that sharp bends in ducting can interfere with system performance, refer to installation instructions for further information.

Please check product specifications with your tradesperson before ordering.

Periodic inspections and cleaning required to prevent dirt, dust or lint accumulating on fan impeller. Recommend annually by a qualified tradesperson. Fan must be disconnected from power supply (unplug fan plug) before removing motor.

2 year standard warranty applies from date of purchase. Proof of purchase required. Refer to our warranty page for more information.
