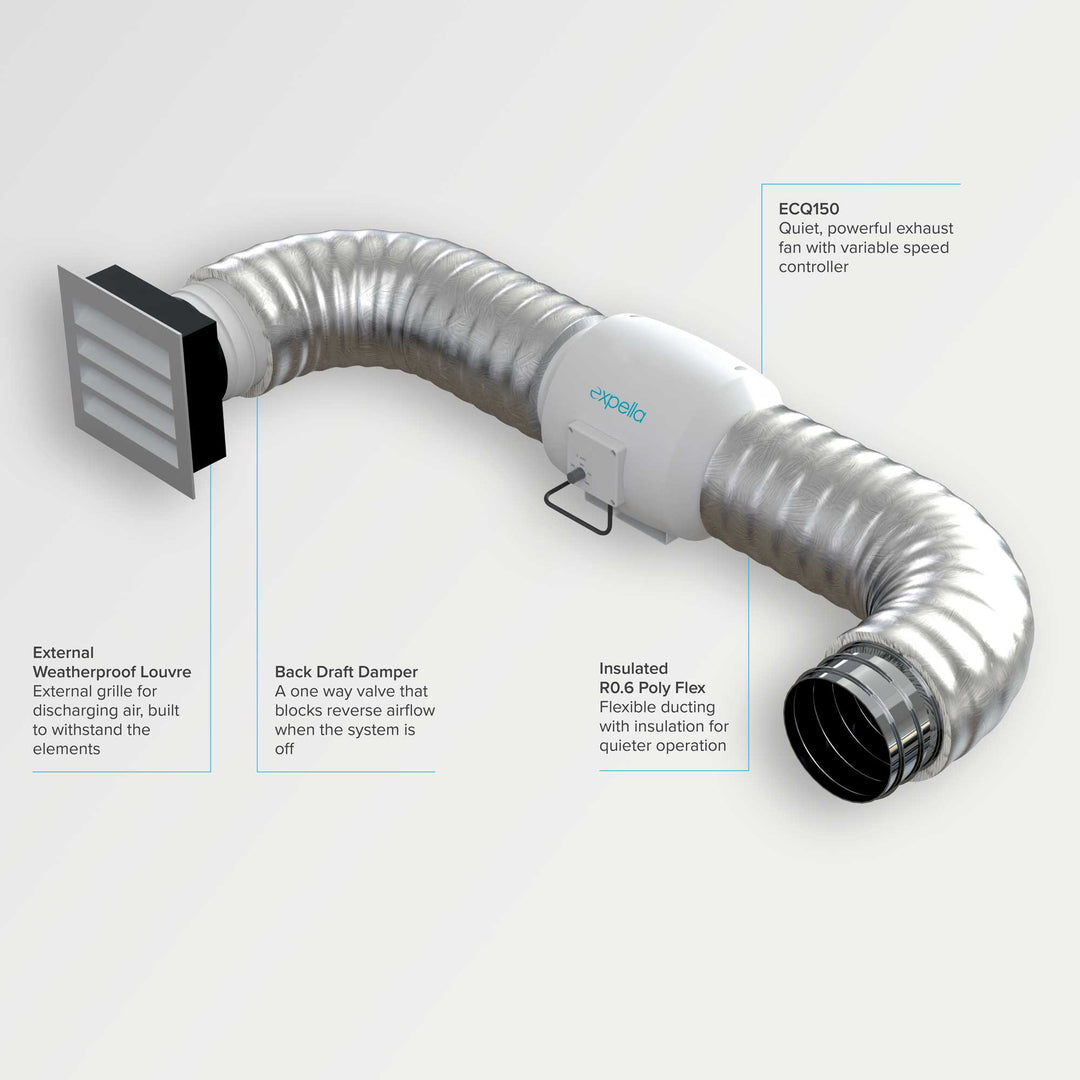

A flexible exhaust duct connected to an inline exhaust fan with callout labels explaining features such as external weatherproof louvre, back draft damper, and insulated RG6 poly flex. The product is shown on a light grey background with blue annotation lines and text.

Quiet Flow EC Inline Exhaust Kit

1406221

$726.00
/
Tax included. Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon

The Quiet Flow EC Inline Exhaust Kit by Expella contains all of the components needed to install a quiet, high performance single point inline ventilation system. The kit includes the ECQ150, an inline EC fan with variable speed control that has been engineered for sound absorption. It offers a quiet and powerful air extraction solution – perfect for ventilating bathrooms, laundries, kitchens and sub floor spaces. Combine the Quiet Flow Inline Exhaust Kit with your preferred internal grille from Expella’s designer range to create a complete ventilation system.


  Download Quiet Flow EC Inline Exhaust Kit fact sheet

Kit contains an ECQ150 Inline Quiet Flow EC Fan that has a double layer of sound absorption for quiet operation, EC motor and variable speed control

Suitable for bathrooms, laundries, kitchens and sub floor ventilation

Exceeds Building Code requirements (NCC2022)

  • Convenient all in one ventilation kit containing everything required to install a single point inline exhaust system, combine this with your choice of internal grille to best suit your space
  • Includes the high performance ECQ150 inline fan with an EC motor, adjustable speed control and double layer sound absorption for quiet operation.
  • Energy efficient, low wattage fan motor for quieter operation
  • Compact fan with a easy mounting bracket, 3 pin plug and 1.5m cord for easy on-site installation
  • Removable fan motor for easy servicing and maintenance

Expella’s Ventilation Kits are all-in-one packages that contain everything you need to set up a ventilation system whilst complying with the following Building Code Requirements (NCC2022) and Australian Standards:

  • NCC F6 (Light and Ventilation)
  • NCC F8 (Condensation Management)
  • NCC J5 (Building Sealing)
  • NCC J6 (A/C & Ventilation)
  • AS1668.2 (Minimum Air Flows for Bathrooms and Laundries)
  • AS4254.1 (Flexible Duct)
  • Bathrooms
  • Laundries
  • Kitchens
  • Sub floor systems
  • 1x ECQ150 Inline Quiet Flow EC Fan
  • 1x 150mm Back Draft Damper (plastic)
  • 1x 6 metre length duct – Insulated R0.6 Poly Flex, 150mm
  • 1x Weatherproof Louvre with Box, 200 x 200mm (150mm spigot)
  • 1x 4m length Tape, Reinforced Acrylic Foil 75mm
  • 4x Cable Ties

All components required for installation of the Quiet Flow Inline Exhaust Kit are included. The Quiet Flow EC Inline Exhaust Kit fan (ECQ150) requires wiring along with duct and external grille installation. Installation by an industry professional (e.g. electrician or builder) or experienced home handyman is recommended. An integrated quick clip mounting bracket is included. Fix the fan in a suitable location between the inlet location and discharge location ensuring it is accessible for future maintenance. Note that sharp bends in ducting can interfere with system performance, refer to installation instructions for further information.

Internal grilles are sold separately, please also refer to the product sheet and instructions relevant to your selection of grille.

Check product specifications with your tradesperson before ordering.

Periodic inspections and cleaning of the fan are required to prevent dirt, dust or lint accumulating on fan impeller. Fan must be disconnected from the power supply (unplug fan plug) before removing the motor.

2 year standard warranty applies from date of purchase. Proof of purchase required. Refer to our warranty page for more information
