1SLD1200ACP

$440.00
/
Tax included. Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon

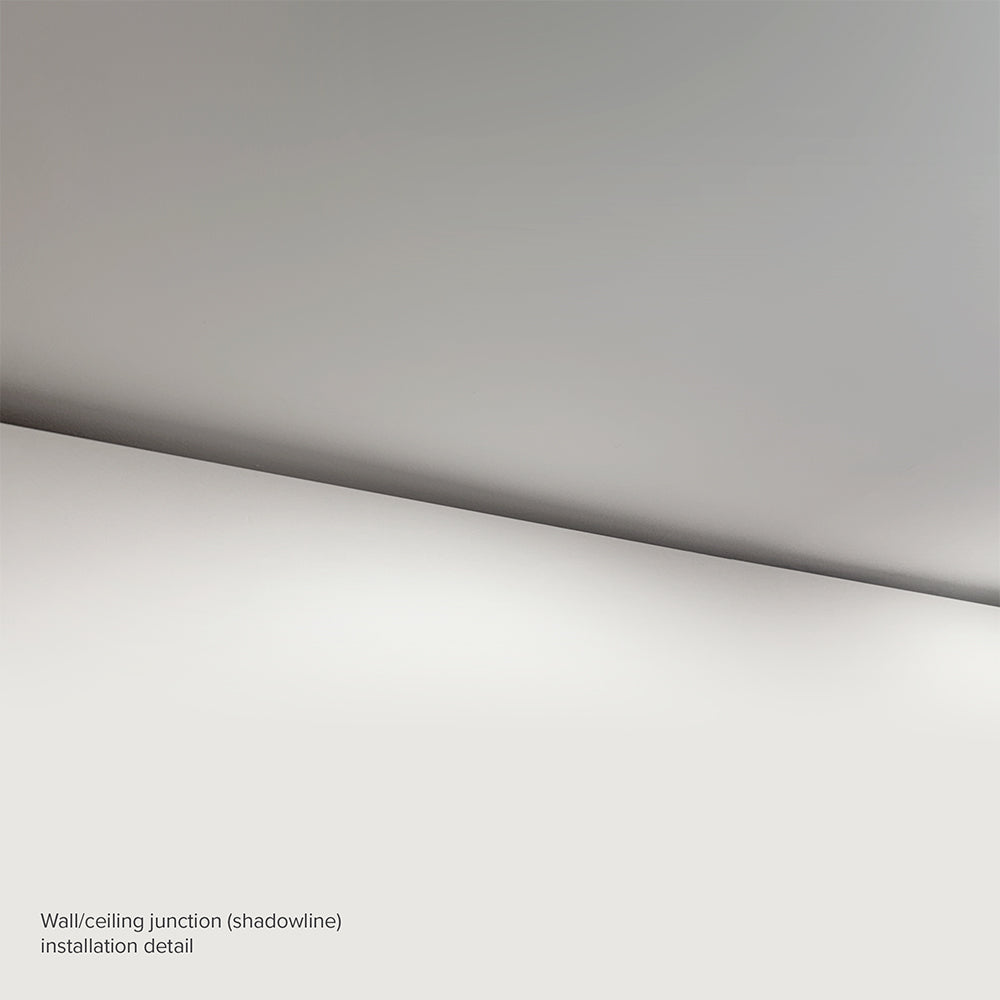

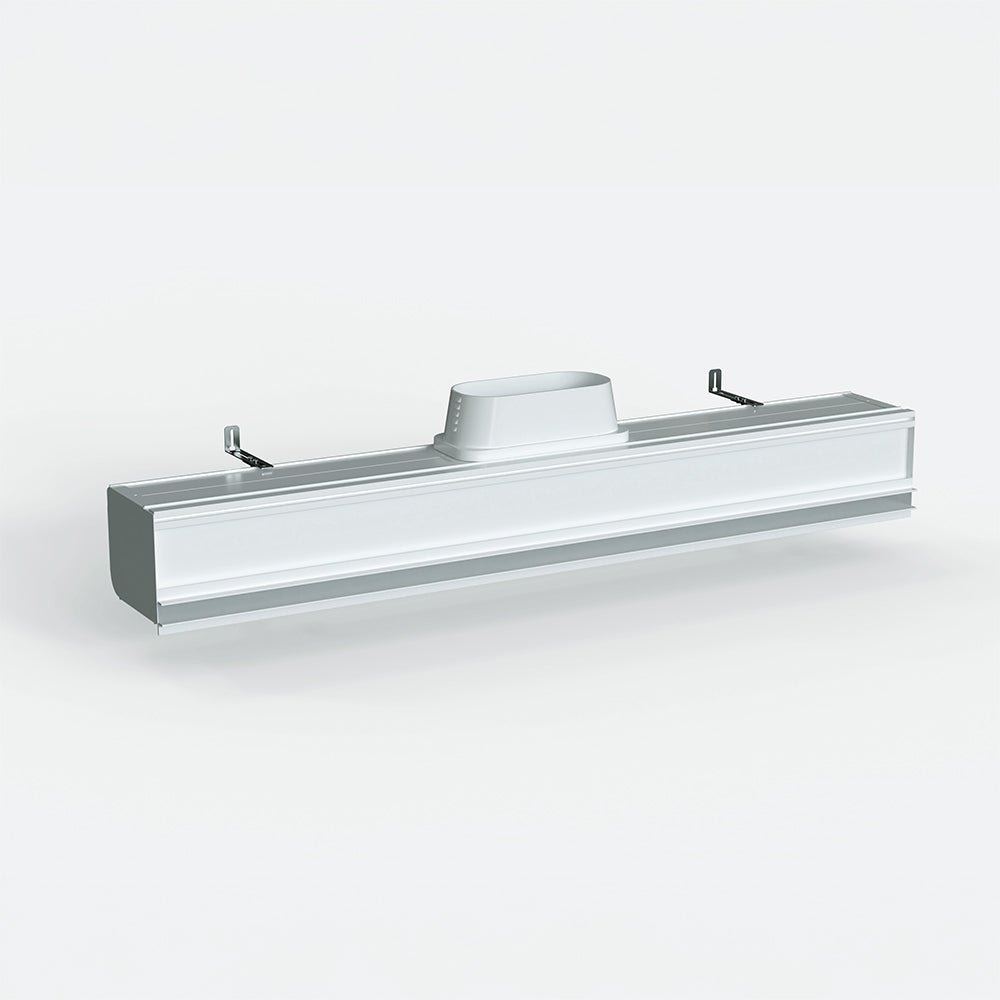

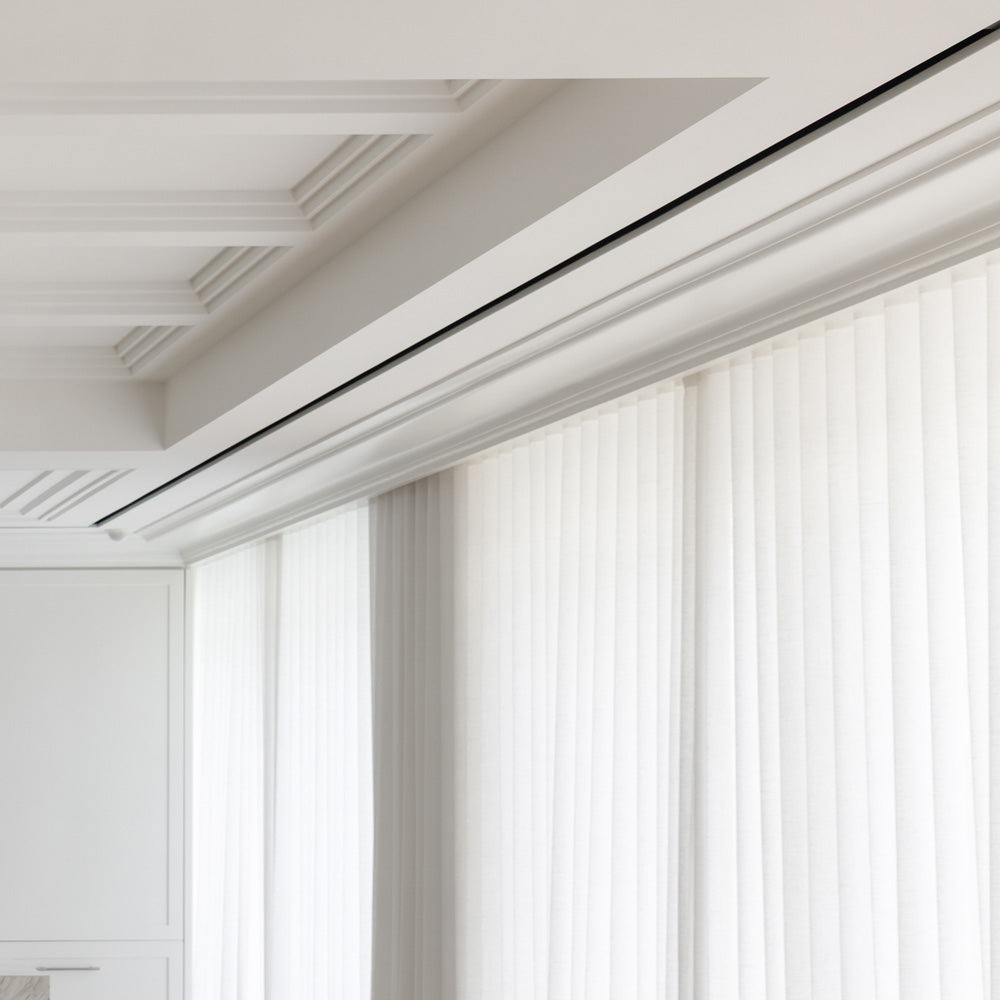

The Shadowline Diffuser AC Pro has been designed with a large profile, specially optimised for air conditioning. It can be installed at the wall/ceiling junction, above joinery, or above a bulkhead for a very discreet air conditioning vent. It can also be installed as a flangeless slot detail in the ceiling or wall. A LED strip light can be installed inside the diffuser to highlight the opening or create ambient lighting. The Shadowline Diffuser AC Pro has a modular design, allowing customisation of the diffuser’s length and aperture to perfectly suit the airflow, dimensional and aesthetic requirements of a room. Made from a custom aluminium extrusion, it has been designed engineered in Australia by Expella for maximum performance and ease of installation.


  Download Shadowline Diffuser AC Pro fact sheet

Designed to blend seamlessly with interior architecture

Easy to install modular design that can be cut or extended to suit varying wall and ceiling sizes

Suitable for use with ducted air conditioning systems

  • Creates a unique shadowline detail between the wall and ceiling while performing the function of diffusing air for an air conditioning (AC) system

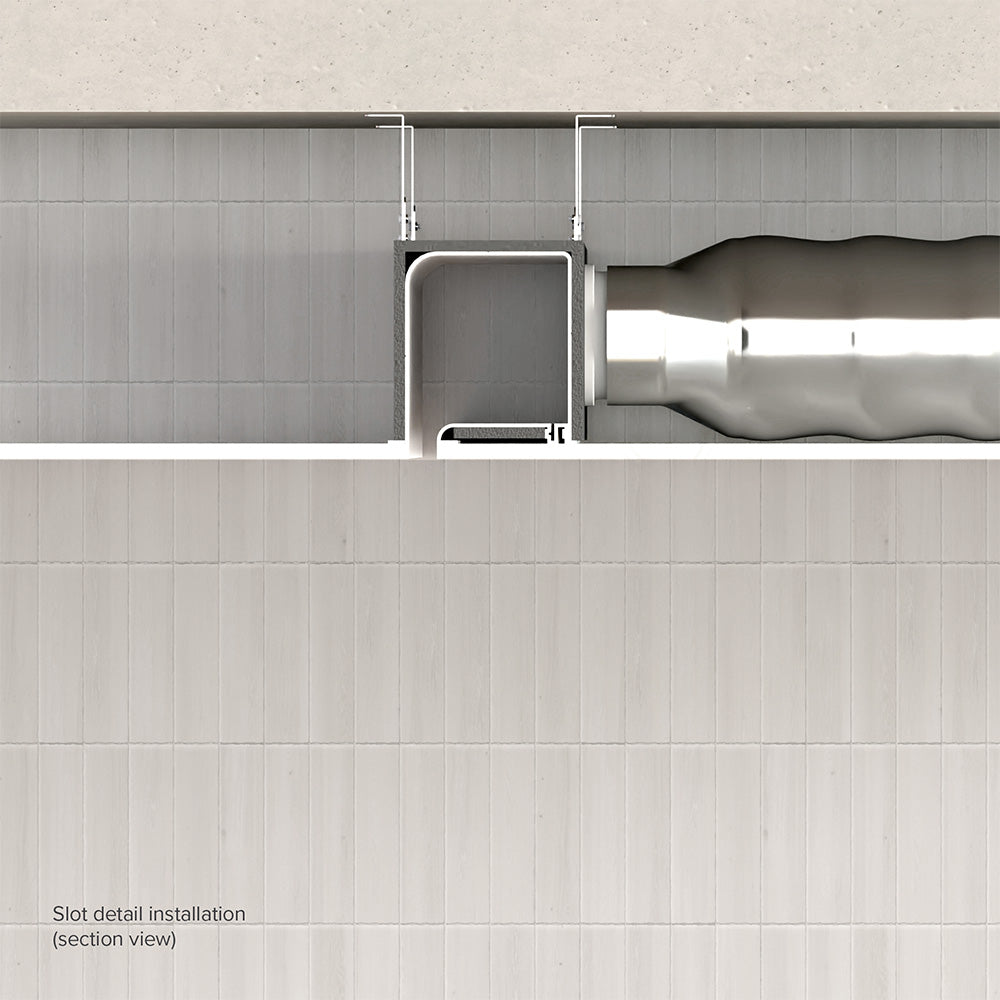

  • Can be installed in the ceiling or wall for a flangeless slot detail
  • Design has been optimised for high performance AC airflow, reduced air turbulence and noise
  • Manufactured from high quality and durable powder coated aluminium

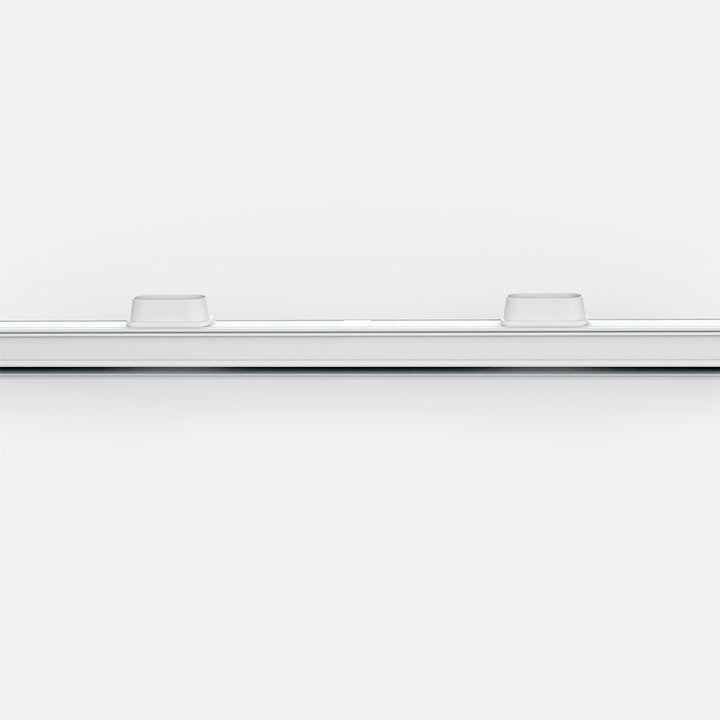

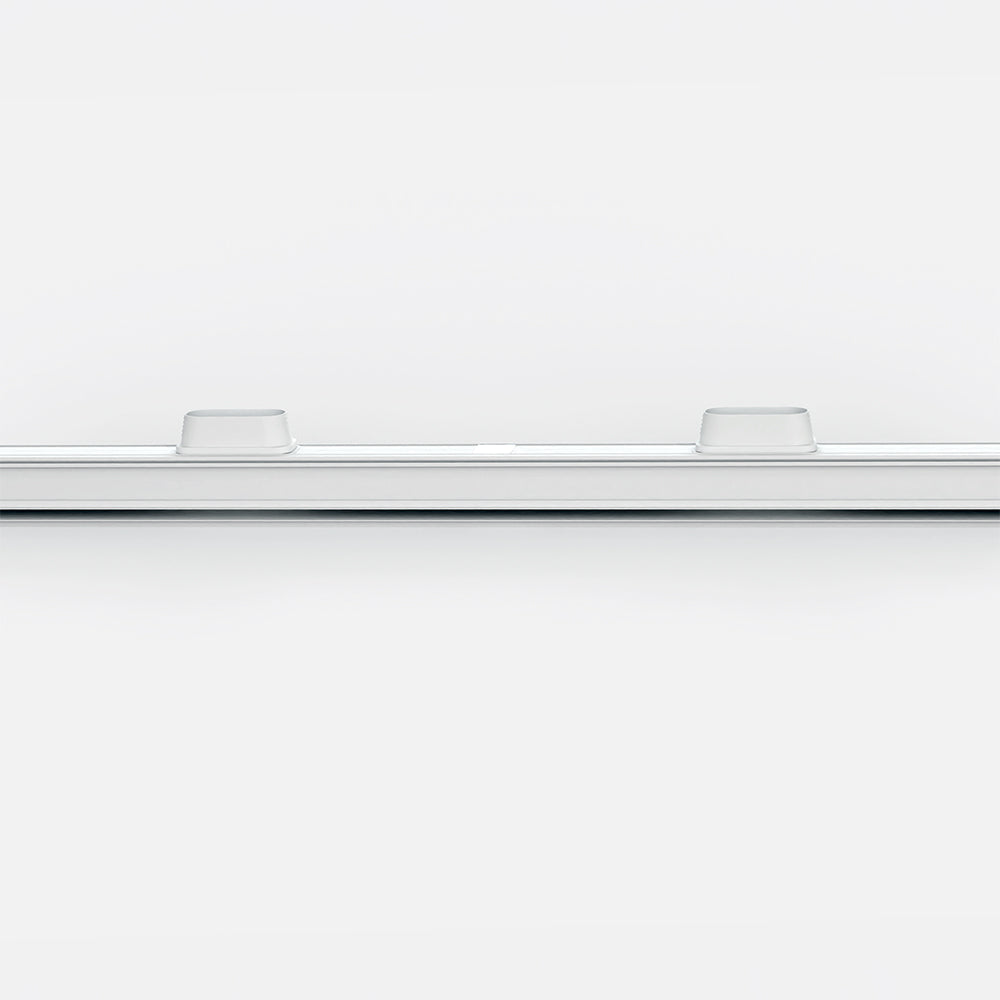

  • A modular unit that can be cut, or extended using joiners, to suit varying wall and ceiling sizes
  • Adjustable base aperture (vent opening size), optimised for AC
  • Supports three spigot sizes – 150, 200 and 250mm
  • Run wall finishes such as tiles and gyprock inside the diffuser opening for a seamless finish
  • Install a LED light strip kit inside the Shadowline Diffuser AC Pro for an ambient lighting effect.
  • Easy to install with adjustable clip-in brackets for multiple fixing options, compatible with Rondo suspended ceilings
  • Creates a rigid structure that secures the ceiling sheet
  • Low profile for restricted ceiling space
  • Configurable duct spigot position, orientation and quantity

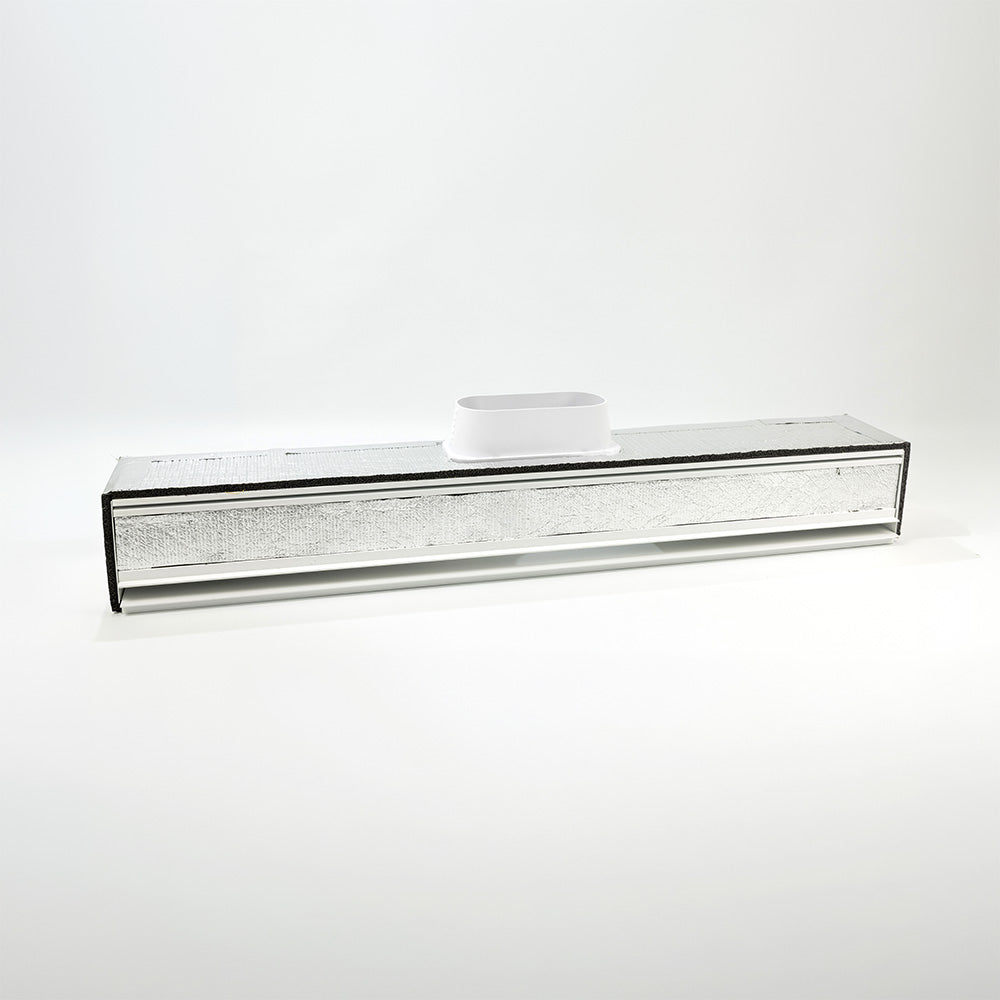

  • Supplied with adhesive insulation wrap
  • Designed and engineered in Australia by Expella

Air conditioning supply and return air grilles (for ducted systems).

  • Shadowline Diffuser AC Pro components
  • 1x spigot for 200mm duct
  • 2x joiners (to join additional Shadowline AC Pro Diffusers)
  • 2x end caps
  • 1x blanking plate
  • Brackets, screws and fixings
  • Adhesive insulation wrap

It is recommended that installation of the Shadowline Diffuser AC Pro is carried out by a qualified tradesperson, it is to be installed as part of a ducted air conditioning system.

Compatible with 150mm, 200mm  and 250mm duct.

Each Shadowline Diffuser AC Pro measures 1200mm in length. It has been designed as a modular system so that units can be joined and/or cut to suit project requirements. The Shadowline Diffuser AC Pro has an aperture that can be adjusted between 25mm and 40mm.

The Shadowline Diffuser AC Pro should be installed prior to wall and ceiling gyprock sheets being installed. The gyprock is then set to the shadowline finish.

Please check product specifications with your tradesperson before ordering.

Periodic cleaning as required

5 year warranty from date of purchase. Refer to our warranty page for more information.
